With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-3DHLW |
| Minimum Order Quantity: | 100SETS |
|---|---|
| Price: | USD25-48/SET |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500SETS/WEEK |
| Name: | Green Welded Wire Fence | Material: | Galvanized Wire |
|---|---|---|---|
| Hole Shape: | Rectangle | Uses: | Protecting |
| Hole Size: | 50mmx100mm | Color: | Green , White |
| High Light: | Green Welded Mesh Fencing,White Welded Mesh Fencing,White Welded Wire Fence |
||
Welded Wire Fence With Y Post As Security Fence Green, White, Blue
Welded wire fence
Welded wire fence introduction
Welded wire fence is welded with high-strength cold drawn low-carbon steel wire to form a mesh, and then hydraulically formed, and then fixed with the steel pipe pillar with link accessories.
Sturcture of the welded wire fence with Y post
The Y-shaped post welded wire fence is a special protection net for the airport.
Welded wire fence is a new type of enclosure product specially designed for the airport.
Welded wire fence uses high-strength low-carbon steel wire for strong welding. The post is rectangular steel or high-strength round pipe, and the top is welded with V-shaped support, which greatly enhances the impact resistance of the fence. The safety protection performance is greatly enhanced after the blade is added to the top.
Advantage of the welded wire fence with Y post
.
Welded wire fence security fencing specification
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm | 3.0mm | 2.0m | 630mm | 2 | Round Post | ||
| 50x150mm | or | or | 830mm | 2 | Rectangular Post(RHS) | ||
| 50x200mm | 3.5mm | 2.50m | 1030mm | 2 | 48x1.5/2.0mm | Square Post(SHS) | |
| 55x200mm | or | or | 1230mm | 2 | 60x1.5/2.0mm | 40x60x1.5/2.0mm | |
| 75x150mm | 4.0mm | 2.9m | 1430mm | 2 | 50X50x1.5/2.0mm | 40x80x1.5/2.0mm | |
| etc. | or | 1530mm | 3 | 60x60x1.5/2.0mm | 60x80x1.5/2.0mm | ||
| 4.50mm | 1630mm | 3 | 80x80x1.5/2.0mm | 80x100x1.5/2.0mm | |||
| or | 1730mm | 3 | |||||
| 5.00mm | 1830mm | 3 | |||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | |||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you. | |||||||

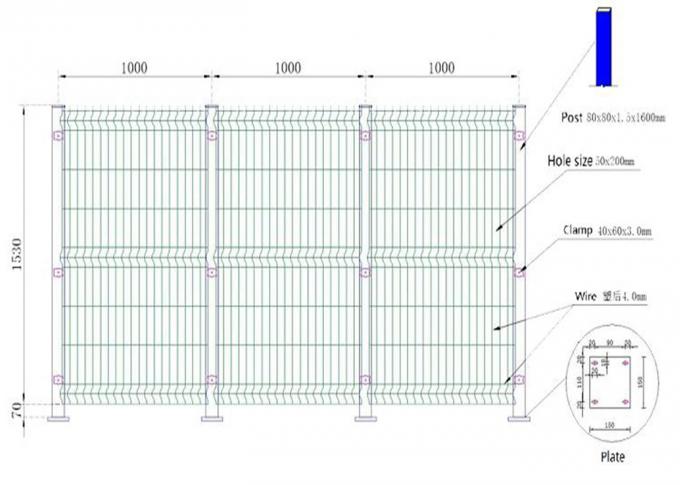

PVC powder coated 3D Fence Panel/3D Curved Fence/3D Curved Fence drawing
About our company
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
