| Place of Origin: | CHINA |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-RXFHW |
| Minimum Order Quantity: | 300 M2 |
|---|---|
| Price: | USD8-20/SQUARE METER |
| Packaging Details: | pallet or in bulk |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000M2/WEEK |
| Type: | Twisted Mesh | Hole Shape: | Hexagonal Hole |
|---|---|---|---|
| Color: | Sliver | Material: | Galvanized Steel Wire |
| Length: | 1-30m/roll | Width: | 1-3m |
| Type: | Rock Fall Protection Fencing | ISO 9001: | ISO 9001 |
| Feature: | Easy Installing | ||
| High Light: | 30m/Roll Rockfall Protection Netting,ISO9001 Rockfall Protection Netting,Rockfall Wire Mesh |
||

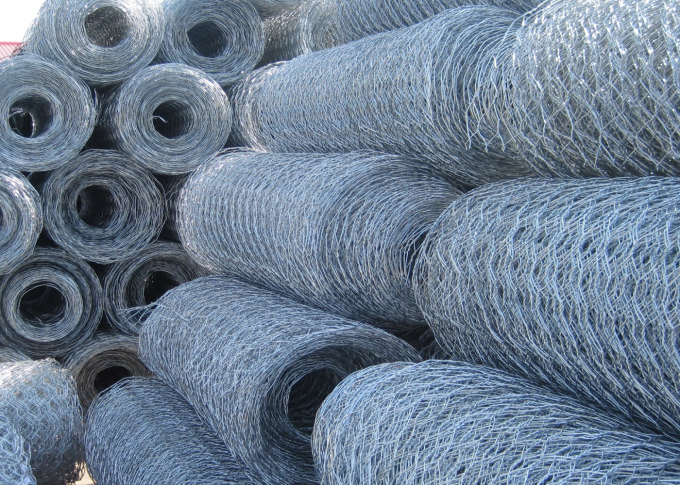

hot dipped galvanized hexagonal wire mesh used for rockfall netting fence introduction:
hexagonal wire mesh used for rockfall netting fence consists of zinc coated double twisted steel woven wire mesh manufactured in accordance with ASTM A975. The steel wire used in the manufacture of the mesh is heavily zinc coated soft temper steel.

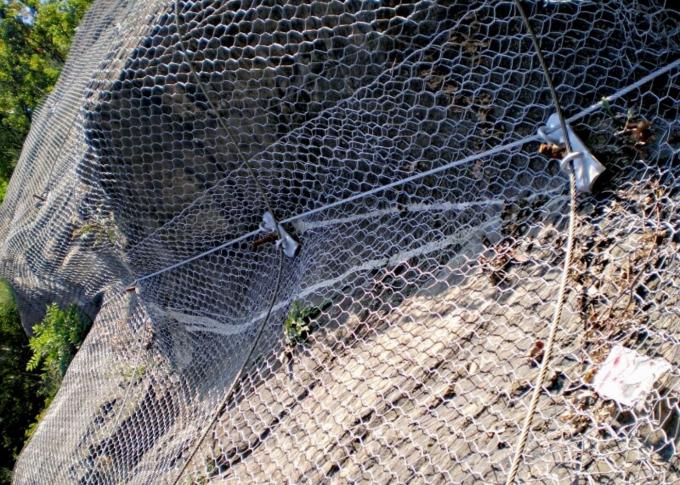

hexagonal wire mesh used for rockfall netting fence is used for a wide variety of civil applications. It is used in conjunction with other double twisted wire mesh products such as gabions, es, etc. or it is used alone for rockfall applications, repair work, etc. Rolled Mesh is supplied at standard lengths and can be cut to fit on site.
Wire
All tests on wire must be performed prior to manufacturing the mesh. All wire should comply with ASTM A975, style 1 coating and galvanized. Wire used for the manufacture of Rolled Mesh and the lacing wire, shall have a maximum tensile strength of 75,000 psi (515 MPa) as per ASTM A641/A641M, soft temper steel.
hot dipped galvanized hexagonal wire mesh used for rockfall netting fence detail:
Table 1 - Sizes for Mesh |
|
| L (m) | W (m) |
| 50 | 2 |
Table 2-Standard Mesh Wire |
|||
| Mesh Type | D (mm) | Mesh Tolerance | Mesh Wire (mm) |
| 6x8 | 64 | ±10% | 2.20 |
| 8x10 | 83 | ±10% | 3.00 |
| Table 3-Standard Wire Diameters | |||
| Mesh Type | Mesh Wire (mm) | Selvedge Wire (mm) | Lacing Wire (mm) |
| 6x8 | 2.20 | 2.70 | 2.20 |
| 8x10 | 3.00 | 3.90 | 2.20 |

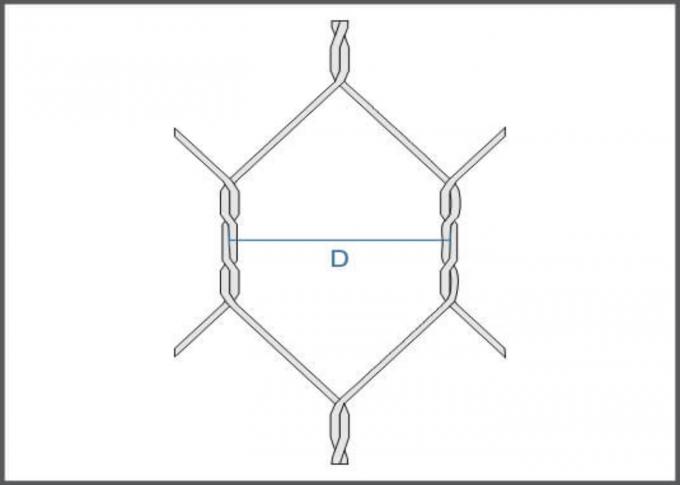

hot dipped galvanized hexagonal wire mesh used for rockfall netting fence drawing
