With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-DPCS |
| Minimum Order Quantity: | 2 ton |
|---|---|
| Price: | USD500-600/TON |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10TON/DAY |
| Materil: | Galvanized Steel Wire | Uses: | Protecting |
|---|---|---|---|
| Blade Size: | 10mm | Surface Treatment: | Hot Dipped Galvanized |
| Application: | Security Fence | Length: | Customized |
| High Light: | Galvanized Razor Tape Wire,Concertina Razor Barbed Wire |
||
hot dipped galvnaized BTO-10 razor tape fencing wire,concertina wire introduction

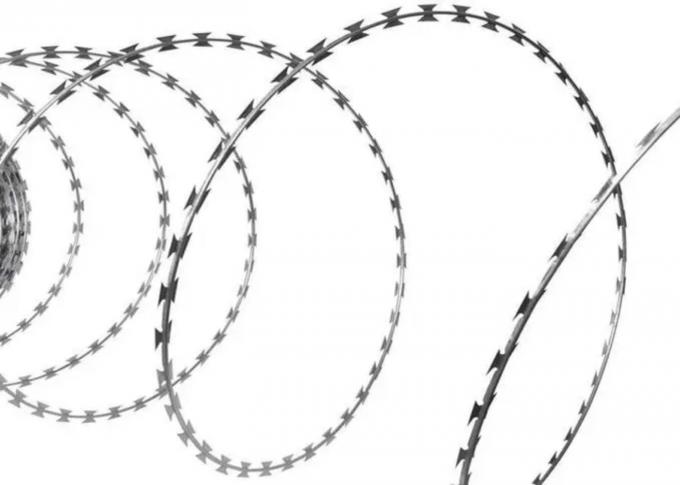

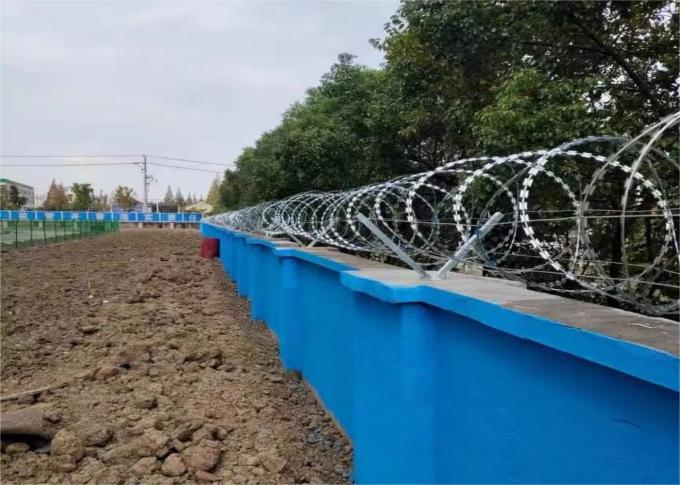

BTO-10 razor tape wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
hot dipped galvnaized BTO-10 razor tape fencing wire,concertina wire detail:

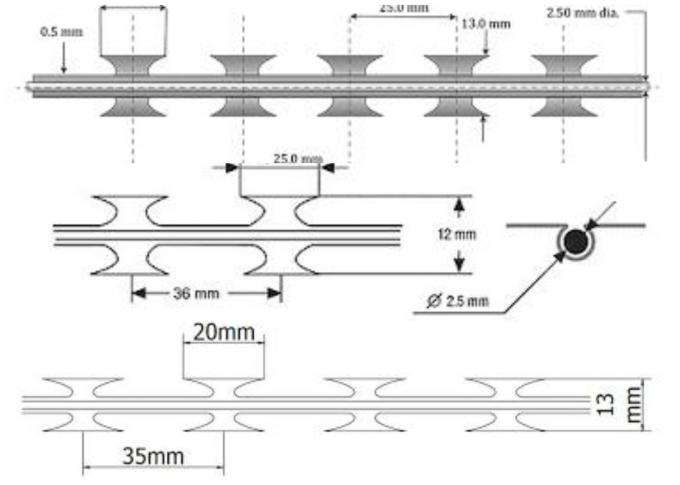

BTO-10 is a commen size of razor tape wire, the blade length is 10mm,thickness is 0.5mm,and the distance of blade is 25mm;width of the BTO-10 razor tape wire is 13mm, the inner wire is 2.5mm.
hot dipped galvnaized BTO-10 razor tape fencing wire,concertina wire length
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
hot dipped galvnaized BTO-10 razor tape fencing wire,concertina wire Package
For the packing , we mainly supply two kind of packing : simple packing and carton packing.
1, For simple packing, inside is water proof paper and outside is weaven bags; sometimes we can load the container one coil by one coil and sometimes we can make the coils to big bundles and for loading easily.
Mainly for BTO-10,12,22,30 and CBT-25
2, For carton packing, it is mainly application to CBT-65,60 (450mm)
3, Speical kind of packing is also available
