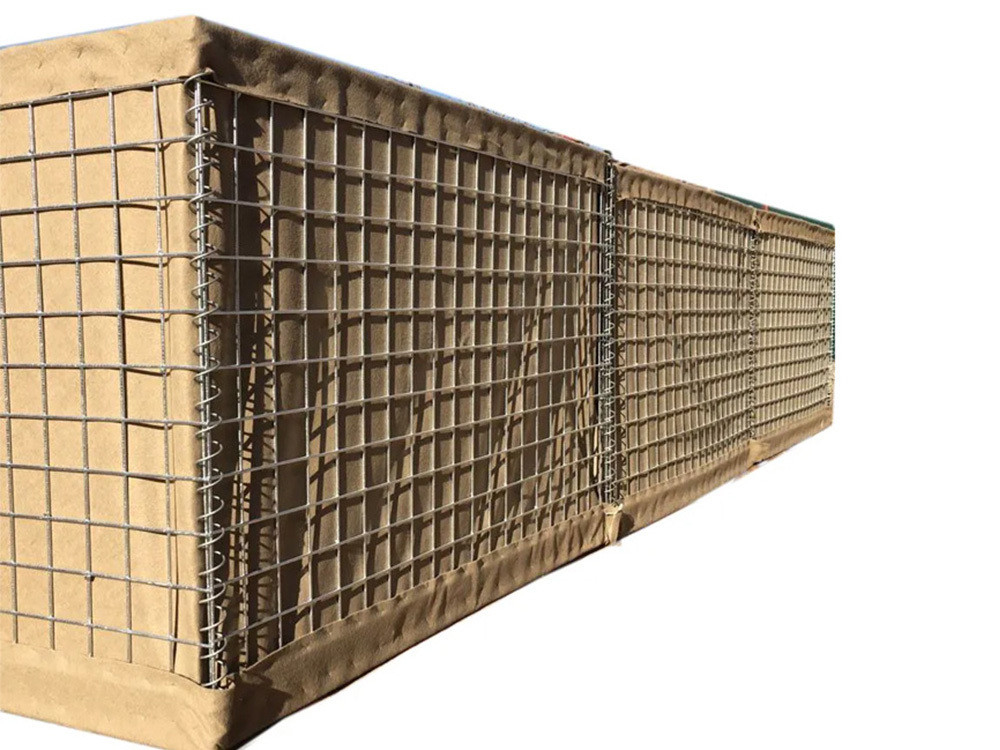

Defensive barrier wall for military and flood control
The defensive barrier is a kind of modern welded gabion for Military fortification and Flood control.
Defensive barrier is made of a welded steel wire mesh container and heavy duty fabric liner, defensive barrier can be used in separate cell or some cells joint together as a wall.
The material of defensive barrier wall is galvanized wire or Galfan wire, The wire will be welded as a cage of mesh, and then will be connected together by spiral binding wire to form a cage, which is lined with non-woven fabric.
Defensive barrier basket can be used separated or several gabion cells can be connected together. The gabion cells are filled with stones or sand, and then assembled and stacked into a retaining wall like structure for use.
There are many size of defensive barrier, customized is acceptable in our factory, following is the common specification.
|
Model
|
Height(M) | Width(M) | Length(M) | Number of cells |
| NG-1(Mil 1) | 1.37 | 1.06 | 1 | 5+4=9 cells |
| NG-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| NG-3(Mil 3) | 1 | 1 | 10 | 5+5=10 cells |
| NG-4(Mil 4) | 1 | 1 | 10 | 5+5=10 cells |
| NG-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| NG-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| NG-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| NG-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| NG-9(Mil 9) | 1 | 0.76 | 9.14 | 6+6=12 cells |
| NG-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
Advantages of Military hesco defense wall
1. The Hesco defensive barrier can be folded, which is convenient for transportation
2. The Hesco gabion is very convenient to use and easy to operate. As long as you open the gabion net, put it on the ground, connect it with a pin, and install sand.
3. The retaining wall can be quickly built with Hesco gabion, which can not only load stones, but also sand. It can be operated manually or mechanically, such as forklifts, excavators, etc.
4. The Hesco gabion is very environmentally friendly and can be reused.
5. The non-woven fabric inside the gabion net has UV protection function.
We can add some concertina wire on the top of defensive barrier wall to enhance the safe.
Package and delivery of defensive barrier
