| Place of Origin: | CHINA |
| Brand Name: | NEW GABION |
| Certification: | ISO9001, ISO14001 |
| Model Number: | XH1688 |
| Minimum Order Quantity: | 10 set |
|---|---|
| Price: | USD 10-100/set |
| Packaging Details: | BULK or pallet |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 SET PER DAY |
| Material: | Steel Wire | Surface Treatment: | Hot Dipped Galvanized |
|---|---|---|---|
| Installation: | Easy | Enviroment: | Friendly |
| Advantage: | Anti-corrosion | Package: | Bulk Or Pallet |
| Delivery: | Easy | Size: | Variouse |
| Customized: | Acceptable |
Defensive barrier wall for military and flood control
The defensive barrier is a kind of modern welded gabion for Military fortification and Flood control.

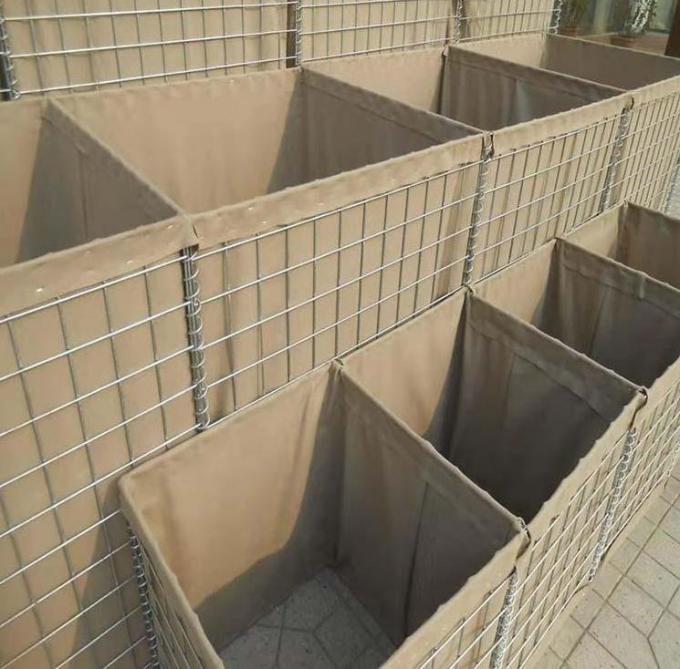

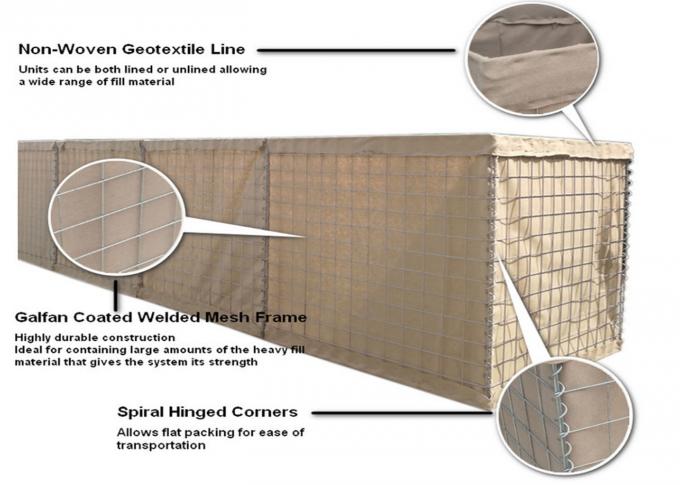

Defensive barrier is made of a welded steel wire mesh container and heavy duty fabric liner, defensive barrier can be used in separate cell or some cells joint together as a wall.
Material: The hesco defensive barrier is made of galvanized welded mesh,spring with other fittings, can be fikled with send, earth,
cement,stone,can be usted in separate cell or some cells joint together
Wire Diameter : 4mm-5.0mm
Spring Diameter : 4.0mm-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size: 0.61m x0.61m,1m x1m, 1.2m x 1.2m, 1.5m x 1.5m, or as your request.
Geotextile : In heavy duty non-woven polypropylene.
Finish : Electro galvanized after weleded,Hot-dipped galvanized welded and galfan coted after welded.
Quality has the initiative
Advanced equipment, leading technology, to create good quality
The quality of survival ,reputation and development,
Create brand-name products, creating Star Enterprise
To seize the international and domestic markets, economic class struggle.
There are many size of defensive barrier, customized is acceptable in our factory, following is the common specification.
|
Model
|
Height(M) | Width(M) | Length(M) | Number of cells |
| NG-1(Mil 1) | 1.37 | 1.06 | 1 | 5+4=9 cells |
| NG-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| NG-3(Mil 3) | 1 | 1 | 10 | 5+5=10 cells |
| NG-4(Mil 4) | 1 | 1 | 10 | 5+5=10 cells |
| NG-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| NG-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| NG-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| NG-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| NG-9(Mil 9) | 1 | 0.76 | 9.14 | 6+6=12 cells |
| NG-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |

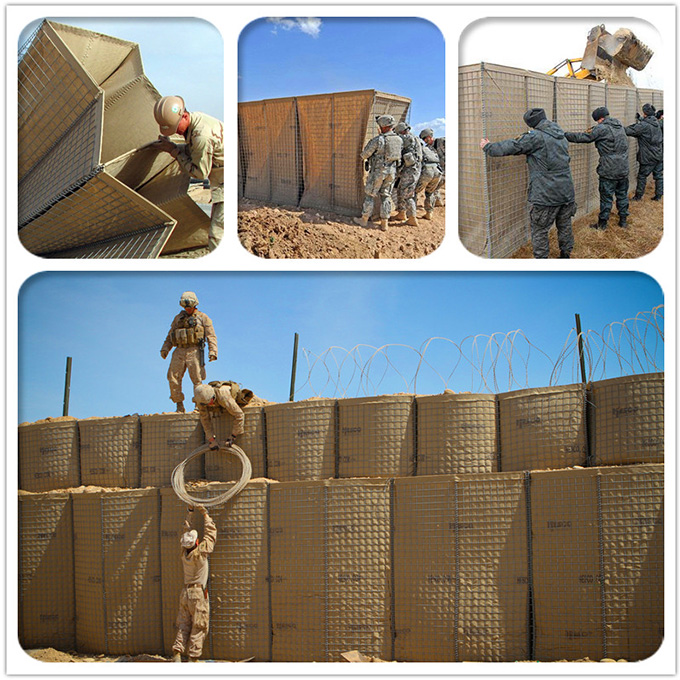

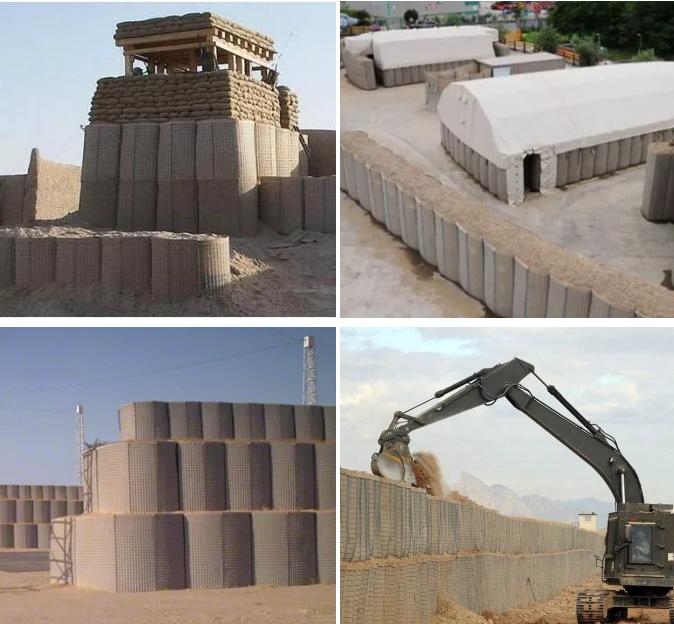

Advantages of Military hesco defense wall
1. The Hesco defensive barrier can be folded, which is convenient for transportation
2. The Hesco gabion is very convenient to use and easy to operate. As long as you open the gabion net, put it on the ground, connect it with a pin, and install sand.
3. The retaining wall can be quickly built with Hesco gabion, which can not only load stones, but also sand. It can be operated manually or mechanically, such as forklifts, excavators, etc.
4. The Hesco gabion is very environmentally friendly and can be reused.
5. The non-woven fabric inside the gabion net has UV protection function.
We can add some concertina wire on the top of defensive barrier wall to enhance the safe.

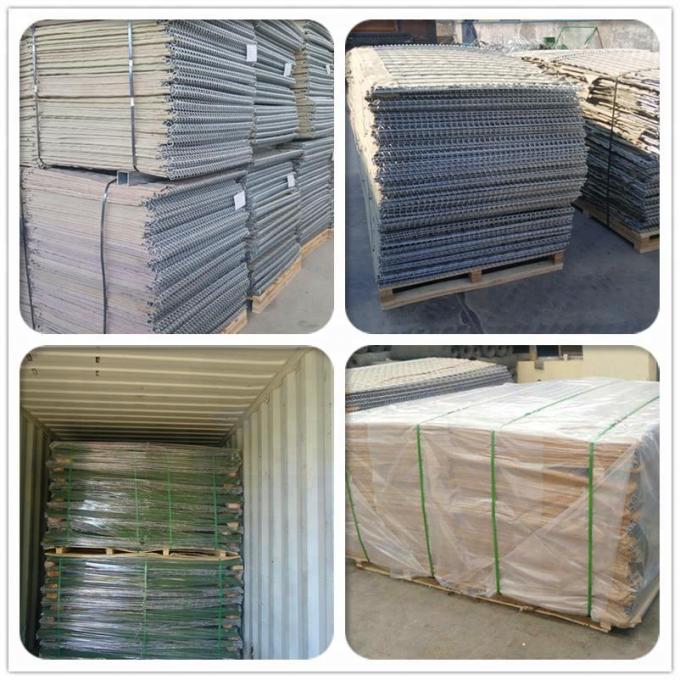

Package and delivery of defensive barrier
