Stainless steel BTO-22 concertina razor wire security fence for border

Stainless steel BTO-22 concertina razor wire security fence for border

  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
  • Stainless steel BTO-22 concertina razor wire security fence for border
Stainless steel BTO-22 concertina razor wire security fence for border
Product Details:
Place of Origin: CHINA
Brand Name: NEW GABION
Certification: ISO9001, ISO14001
Model Number: XH1688
Payment & Shipping Terms:
Minimum Order Quantity: 100 roll
Price: USD3.0-10.2/ROLL
Packaging Details: 5 rolls/carton or waterproof paper and weave bag
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 TON PER DAY
Contact Now
Detailed Product Description
Material: Hot Dipped Galvanized Wire Or Stainless Steel Wire Advantage: Security Fence
Color: Green, Silver Specification: Variouse Types
Cutomized: Yes Wire Diameter: 2.5mm
Installation: Easy Application: Army, Prison, School, Bank, Border, Military

Concertina razor wire fence

Concertina Razor Wire


Concertina razor wire as a greater sense of security option, concertina wire coil is the most defensive barrier for multiple purposes.
The center wire diameter of concertina razor wire is 2.5 mm , around the center wire there is consists of a continuous mild steel strip that is enclosed with sharp blades. All coils are clipped together to obtain a stable and homogeneous network.

The concertina razor wire adds an anti-climb quality to almost all fences.



Stainless steel BTO-22 concertina razor wire security fence for border 0

Stainless steel BTO-22 concertina razor wire security fence for border 1



Concertina razor wire types



Single Coil Razor Wire Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.



Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an ntersecting shape after opening with beautiful feature and practicality.



Flat warp razor wire Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.



Razor Wire Fence Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very



Stainless steel BTO-22 concertina razor wire security fence for border 2

Stainless steel BTO-22 concertina razor wire security fence for border 3





Concertina Wire Coils Specification:
Type Outside Diameter No. of Loops Standard Length per Coil Notes
CBT-65 450mm 33 8M Single coil
CBT-65 500mm 41 10M Single coil
CBT-65 700mm 41 10M Single coil
CBT-65 960mm 53 13M Single coil
BTO - 10.15.22 500mm 102 16M Cross type
BTO - 10.15.22 600mm 86 14M Cross type
BTO - 10.15.22 700mm 72 12M Cross type
BTO - 10.15.22 800mm 64 10M Cross type
BTO - 10.15.22 960mm 52 9M Cross type



Concertina razor wire material



The material of concertina razor wire:

  • Stainless steel 304
  • Stainless steel 316
  • Stainless steel 316L
  • Hot dipped galvanized
  • PVC coated

Application of the concertina razor wire:

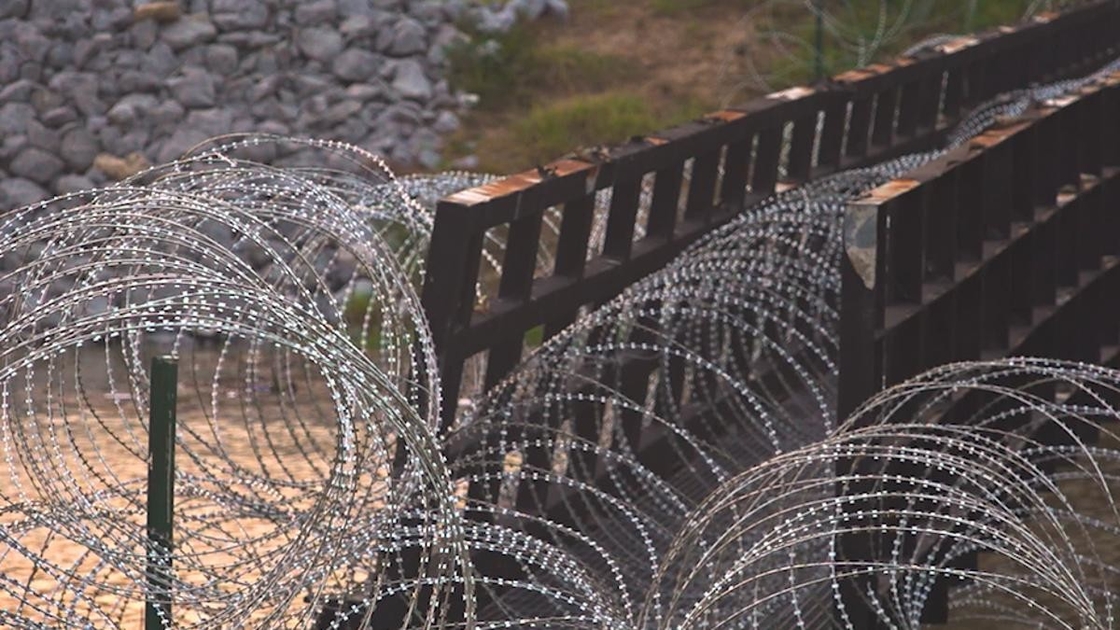

Concertina Razor wire is widely used as Razor Wire Fence in military affair, persion, airport fence, bank fencing, house fencing, railway, etc.

Stainless steel BTO-22 concertina razor wire security fence for border 4

Stainless steel BTO-22 concertina razor wire security fence for border 5

Stainless steel BTO-22 concertina razor wire security fence for border 6



Package of Concertina razor wire:



Concertina Razor  Wire: 5 rolls/carton or waterproof paper and weave bag

Delivary Detail: usually 12-15 days after your deposit



Stainless steel BTO-22 concertina razor wire security fence for border 7

Stainless steel BTO-22 concertina razor wire security fence for border 8
