BTO-22 450MM Stainless steel concertina razor wire security fence for military army

BTO-22 450MM Stainless steel concertina razor wire security fence for military army

  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
  • BTO-22 450MM Stainless steel concertina razor wire security fence for military army
BTO-22 450MM Stainless steel concertina razor wire security fence for military army
Product Details:
Place of Origin: CHINA
Brand Name: NEW GABION
Certification: ISO9001, ISO14001
Model Number: XH1688
Payment & Shipping Terms:
Minimum Order Quantity: 100 roll
Price: USD3.0-10.2/ROLL
Packaging Details: 5 rolls/carton or waterproof paper and weave bag
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 TON PER DAY
Contact Now
Detailed Product Description
Material: Hot Dipped Galvanized Wire Or Stainless Steel Wire Advantage: Security Fence
Color: Green, Silver Specification: Variouse Types
Cutomized: Yes Wire Diameter: 2.5mm
Installation: Easy Application: Army, Prison, School, Bank, Border, Military

Concertina razor wire fence

Concertina Razor Wire


Concertina razor wire as a greater sense of security option, concertina wire coil is the most defensive barrier for multiple purposes.


Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers,government building or other security facilities.
Also used for division of railway, highway, agricultural fencing, etc.



BTO-22 450MM Stainless steel concertina razor wire security fence for military army 0

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 1

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 2



Concertina razor wire types



Single Coil Razor Wire Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.



Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an ntersecting shape after opening with beautiful feature and practicality.



Flat warp razor wire Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.



Razor Wire Fence Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very



BTO-22 450MM Stainless steel concertina razor wire security fence for military army 3

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 4





Concertina Wire Coils Specification:
Type Outside Diameter No. of Loops Standard Length per Coil Notes
CBT-65 450mm 33 8M Single coil
CBT-65 500mm 41 10M Single coil
CBT-65 700mm 41 10M Single coil
CBT-65 960mm 53 13M Single coil
BTO - 10.15.22 500mm 102 16M Cross type
BTO - 10.15.22 600mm 86 14M Cross type
BTO - 10.15.22 700mm 72 12M Cross type
BTO - 10.15.22 800mm 64 10M Cross type
BTO - 10.15.22 960mm 52 9M Cross type



Outside Diameter No. of Loops Standard Length per Coil Razor Type Notes
450mm 33 7M-8M CBT-60, 65 Single Coil
500mm 56 12M-13M CBT-60, 65 Single Coil
700mm 56 13M-14M CBT-60, 65 Single Coil
960mm 56 14M-15M CBT-60, 65 Single Coil
450mm 56 8M-9M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
500mm 56 9M-10M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 10M-11M (3clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
600mm 56 8M-10M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
700mm 56 10M-12M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
800mm 56 11M-13M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
900mm 56 12M-14M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
960mm 56 13M-15M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type
980mm 56 14M-16M (5clips) BTO-10, 12, 18, 22, 28, 30 Cross Type

Concertina razor wire material



The material of concertina razor wire:

  • Stainless steel 304
  • Stainless steel 316
  • Stainless steel 316L
  • Hot dipped galvanized
  • PVC coated

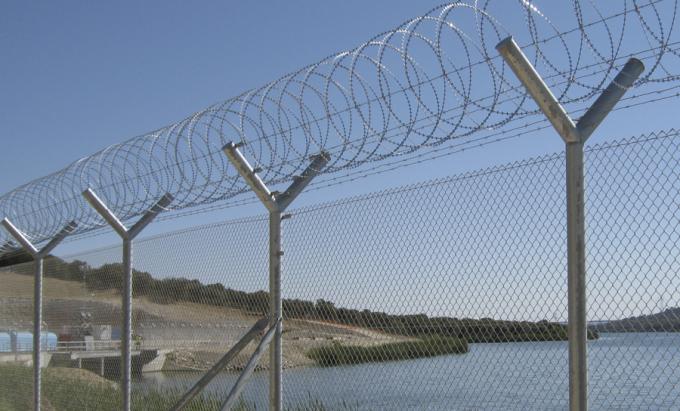

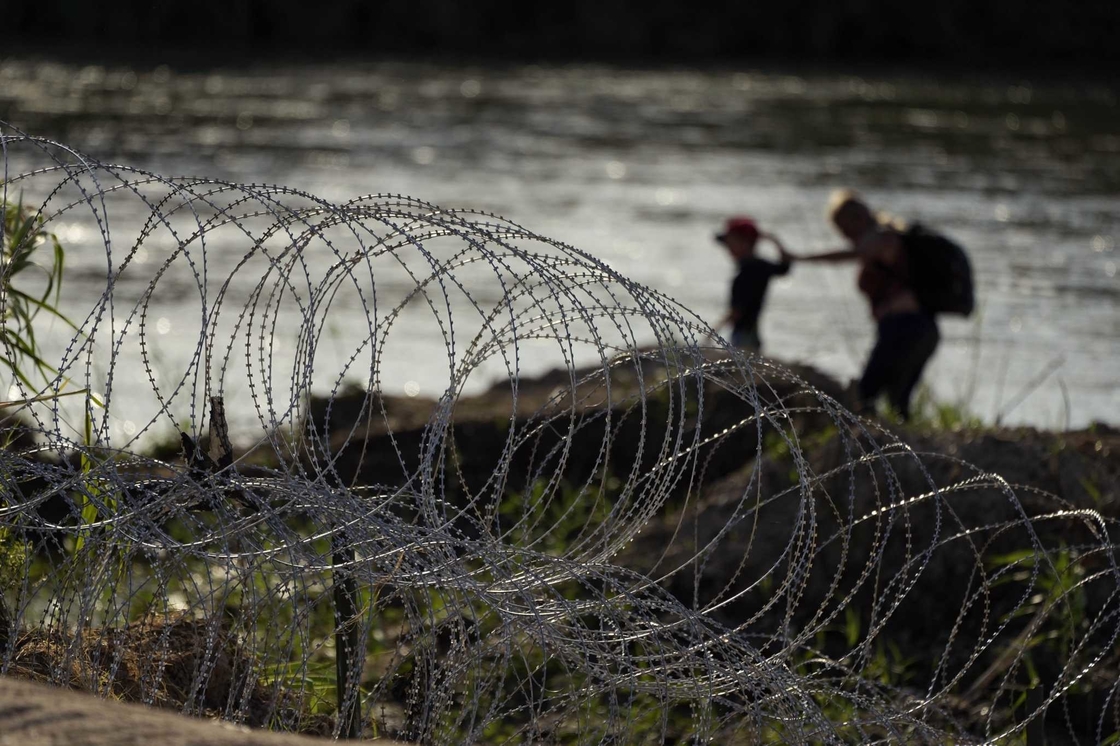

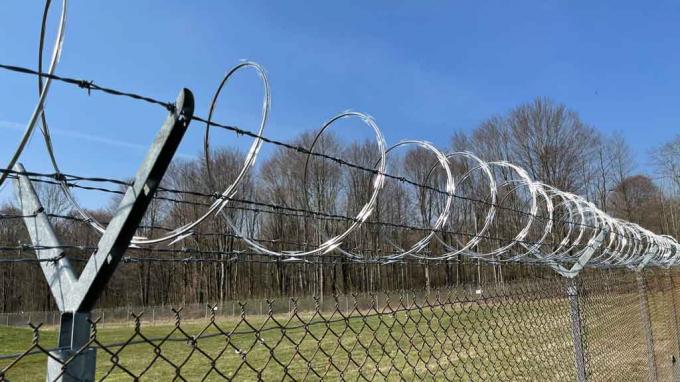

Application of the concertina razor wire:



BTO-22 450MM Stainless steel concertina razor wire security fence for military army 5

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 6

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 7



Package of Concertina razor wire:

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 8

BTO-22 450MM Stainless steel concertina razor wire security fence for military army 9
