| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-SLW |
| Minimum Order Quantity: | 1000 square meter |
|---|---|
| Price: | USD1.0-2.5/SQUARE METER |
| Packaging Details: | BUNDLE+PALLET |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 SQUARE METERS/DAY |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Color: | Silver, Green |
|---|---|---|---|
| Application: | To Protect The Riverbank | Diameter Of Wire: | 2.7mm, 3.2mm |
| Hole Shape: | Hexagonal | Wire Gauge: | 16 |
| High Light: | PVC Coated Gabion Baskets,PVC Gabion Baskets,Galvanised Gabion Baskets |
||
Hot Dipped Galvanized PVC Coated Gabion Basket For Protecting Riverbank

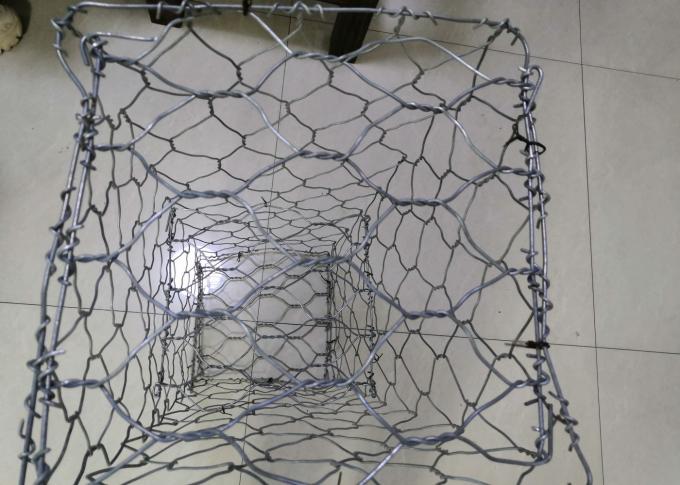

Gabion basket
About Gabion Basket
Gabion basket is also well know as gabion cage, stone cage.
Gabion basket cage is made of hot dipped galvanized wire, with heavy galvanized, the cage is woven with double twist and hexagonal mesh.
The gabion basket cage is woven by machine, the diameter of wire is 2.2mm, 2.7mm, 3.4mm ect, but the edges of cage will be selvedged with a wire having a greater diameter.

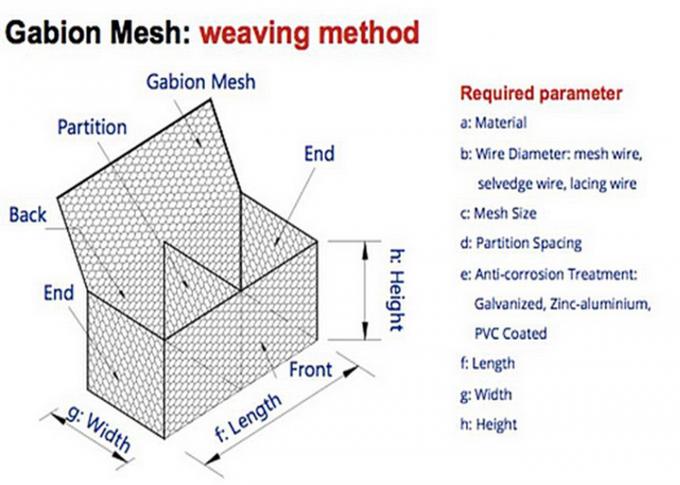

Specification of the gabion
Wire Diameter: 2.2mm to 4.4mm
Mesh:60*80mm,80*100mm,100*120mm,120*150mm
Box size:1*1*1m,2*1*1m,3*1*1m,4*1*1m
| Aperture | 8x10 cm | 9x11 cm |
| Mesh Wire diameter | 2.7mm | 2.7mm |
| Selvedge wire | 3.4mm | 3.4mm |
| Tie wire | 2.2mm | 2.2mm |
| Material | Hot Galvanized wire | Hot Galvanized wire |
| Common size | 2m x 1m x 1m | 2m x 1m x 1m |
| Weight | 16.7kg/set | 16.0kg/set |
| Packing & loading | 100sets/bundle ,1200sets/20ft container ,1500sets/40HC | |
| Feature | Strong structure and corrosion-resistance to protect the dam and riverbank | |
The Advantages of the gabion
1. Using gabion to build dams is fast and highly mechanized,
2. Convenient transportation: the gabion can be folded and packed with pallets, it will be save the freight..
3. The gabion is easy to install, it can be assembled on the construction site, which is convenient and fast.
4. Strong corrosion resistance: Wire surface of the gabion is adopted hot galvanizing technology to increase its corrosion resistance.
5. Environmental protection: the earth between the filling materials of the embankment built with gabion net is conducive to the growth of plants.
XINGEBIN brand woven gabion basket is widely used for the following application: control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.
