| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-SLW |
| Minimum Order Quantity: | 1000 square meter |
|---|---|
| Price: | USD1.0-2.5/SQUARE METER |
| Packaging Details: | BUNDLE+PALLET |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 SQUARE METERS/DAY |
| Materil: | 5% Galfan Wire | Hole Size: | 120mmx150mm |
|---|---|---|---|
| Width:: | 1m | Length:: | 2m |
| Hight:: | 1.5 | Hole Shape: | Hexagonal |
| Wire Gauge: | 2.0-4.0mm | ||
| High Light: | Wire Gabion Baskets,Galfan Gabion Baskets,Gabion Wire Baskets |
||
5% hot dipped galfan wire gabion basket use for reclamation works application
* Soil erosion is an ever present problem and gabions have proved to be a lasting solution around the world. The lasting appeal of gabions cage lies in their inherent flexibility.

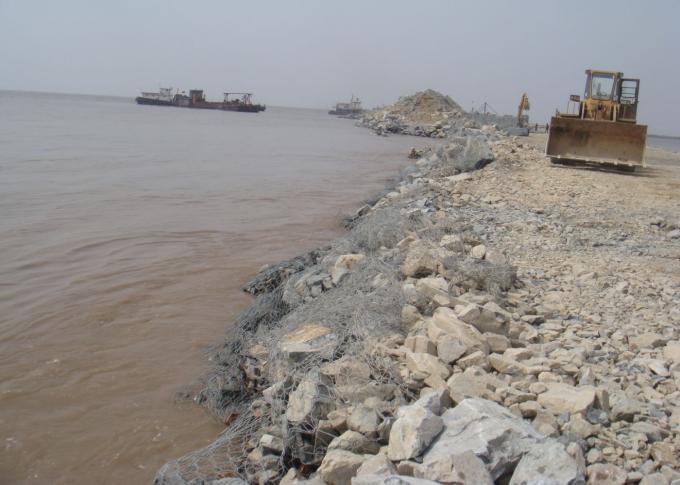

* The most common civil engineering use of gabions cage is to stabilize shorelines or slopes against erosion. Other uses include temporary floodwalls, to filter silt from runoff, for small or temporary/permanent dams.

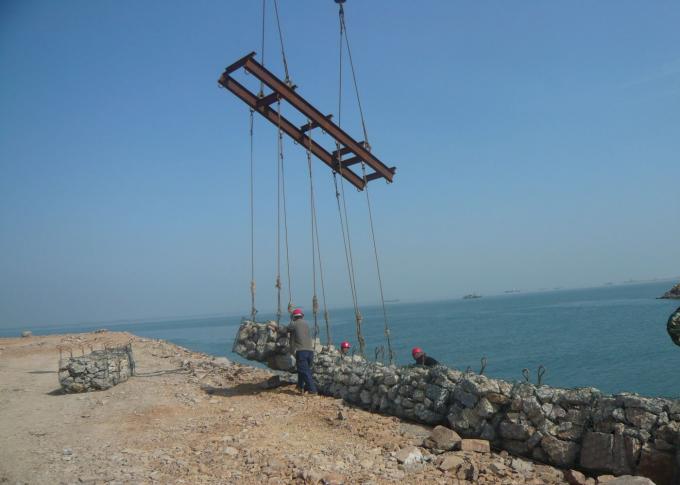

* In civil engineering a gabion wall is a retaining wall made of rectangular containers basketsfabricated of heavily galvanized wire, which are filled with stone and stacked on one another, usually in tiers that step back with the slope rather than vertically.
5% hot dipped galfan wire gabion basket use for reclamation works detail:
| Length(m) | Width(m) | Height(m) | Diaphragm | Volume(m3) | Tolerance |
| 2.0 | 1.0 | 0.3 | 1 | 0.6 |
L:+/-3% W:+/-5% |
| 3.0 | 1.0 | 0.3 | 2 | 0.9 | |
| 4.0 | 1.0 | 0.3 | 3 | 1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 0.5 | 0 | 0.5 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |

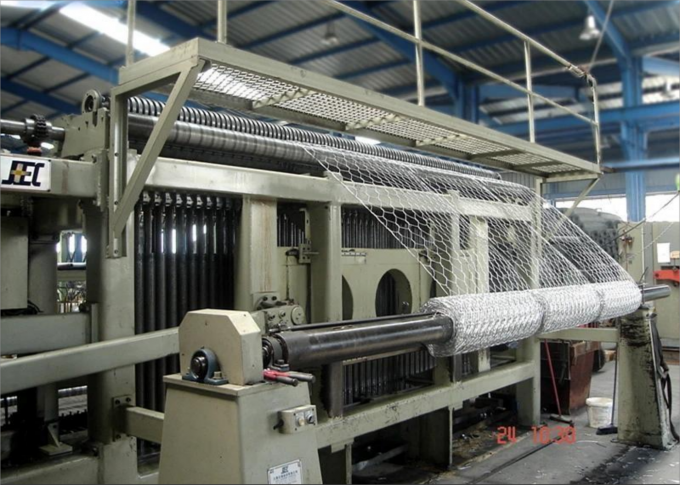

5% hot dipped galfan wire gabion basket use for reclamation machine:
