| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-NLW |
| Minimum Order Quantity: | 300 square meter |
|---|---|
| Price: | USD1.2-3.6/SQUARE METER |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 SQUARE METER/DAY |
| Type: | Fencing | Feature: | Easily Assembled |
|---|---|---|---|
| Metal Type: | High Quality Low Carbon Steel Wire | Material: | Galvanized Iron Wire |
| Color: | Sliver | Name: | Galvanized Steel Field Fencing |
| High Light: | Heavily Wire Mesh Fencing,Galvanized Wire Mesh Fencing,Galvanized Steel Field Fencing |
||

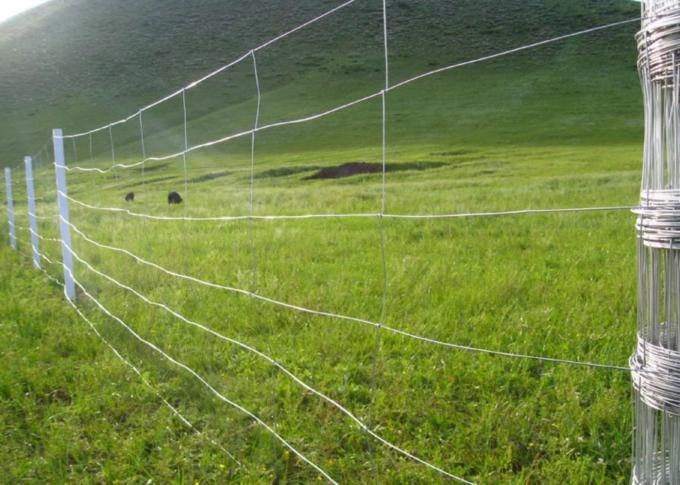

Heavily Hot-Dip Galvanized Grassland Fence / Farm Fence / Field Fence introduction
grassland fence is a fence found in the livestock farming. The deer fence is widely used in the grassland areas for purposes of protecting ecological balance and preventing landslides. It looks very attractive, it is sturdy, durable and low priced. The grassland fence is normally made out of hot-dip galvanized steel wires, whose zinc coating weight is usually 60g-100g/m2. But in wet areas, there is a relatively high requirement for the zinc coating weight, namely about 230g/m2. Recently cold galvanized steel wires are also used to produce deer fences in Africa.
Horizontal wires, or warp wires of the grassland fence panel, feature their tensile resistance 80kgs to 90kgs to increase their impact resistance. Meanwhile vertical wires, or weft wires of the grassland fence panel, are mild steel wires with tensile resistance 40kgs to 50kgs. Vertical wires are wrapped around horizontal wires, and in terms of the wrapping process, the edge wire should be wrapped at least 2.5 laps, whereas the inner wire should be wrapped at least 5 laps (In the course of wrapping, the mechanical pressure 2Tons to 3Tons should be applied to prevent vertical wires from sliding).
Heavily Hot-Dip Galvanized Grassland Fence/Farm Fence/Field Fence specitication
| No. | Item | Specification | The top and bottom wires diameter |
The middle wires diameter |
Roll diameter |
| 1. | 7/150/813/50 | 102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
| 2. | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 2.5 | 2.0 | 280 |
| 3. | 8/150/902/50 | 89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
| 4. | 8/150/1016/50 | 102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
| 5. | 8/150/1143/50 | 114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| 6. | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 2.5 | 2.0 | 280 |
| 7. | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| 8. | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 2.5 | 2.0 | 280 |
| 9. | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| 10. | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 2.5 | 2.0 | 280 |
| Note: we can also produce the mesh according to the customers special requirements. | |||||

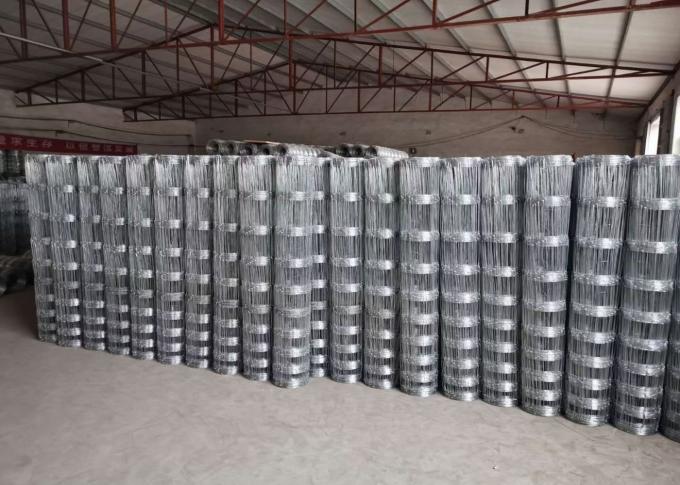

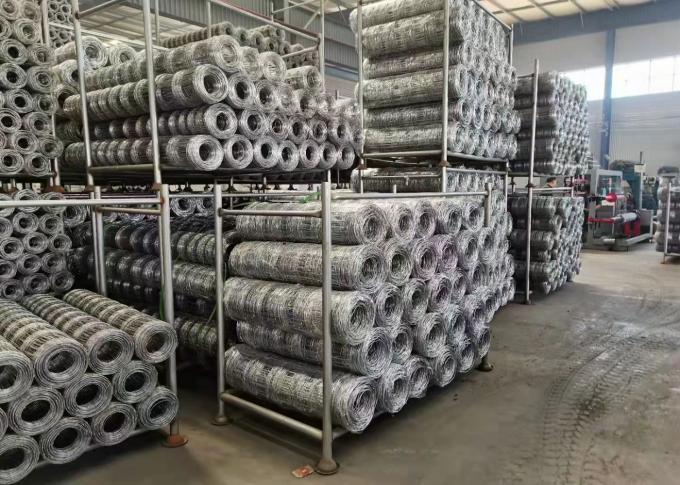

Heavily Hot-Dip Galvanized Grassland Fence/Farm Fence/Field Fence packing
