With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-AQFHW |
| Minimum Order Quantity: | 100SETS |
|---|---|
| Price: | USD15-40/SET |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500SETS/WEEK |
| Materil: | Steel Plate | Hole Size: | 30mmx60mm |
|---|---|---|---|
| Color: | Green | Type: | Fencing |
| Application: | Fence Mesh | ||
| High Light: | PVC Coated Expanded Metal Fence,Powder Coated Expanded Metal Fence,Highway Powder Coated Metal Fence |
||

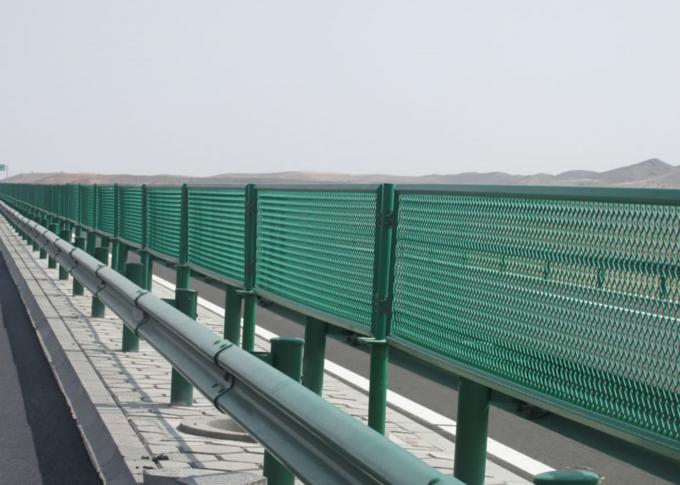

PVC powder coated expanded metal fence use for highway
Expanded metal fencing systems are designed for a number of applications from perimeter demarcation to the highest level of security.

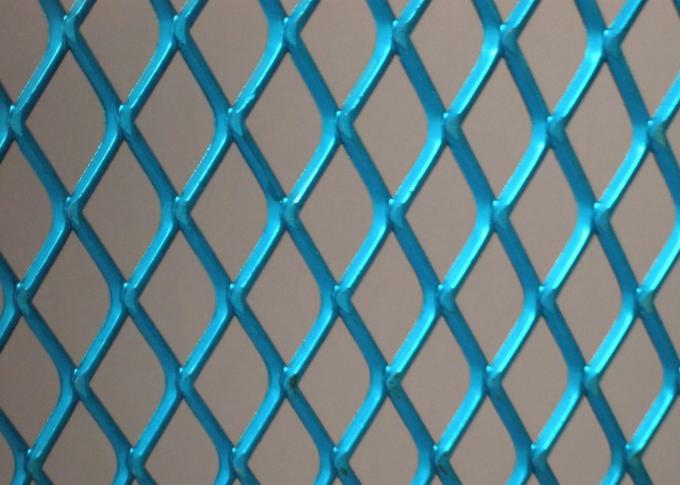

Expanded metal is a popular kind of wire fences. Diamond fencing provides a substantially more secure and cost effective alternative to palisade or chain link security fencing. Expanded metal fence offers easy installation and long life expectancy, it has a unique post/rail design with no protruding bolts. Suitable for public safety and security.
Material: low carbon steel plate,stainless steel plate
Hole Shape: diamond,square,hexagonal or special shape
Sheet thickness: 0.1mm~8mm

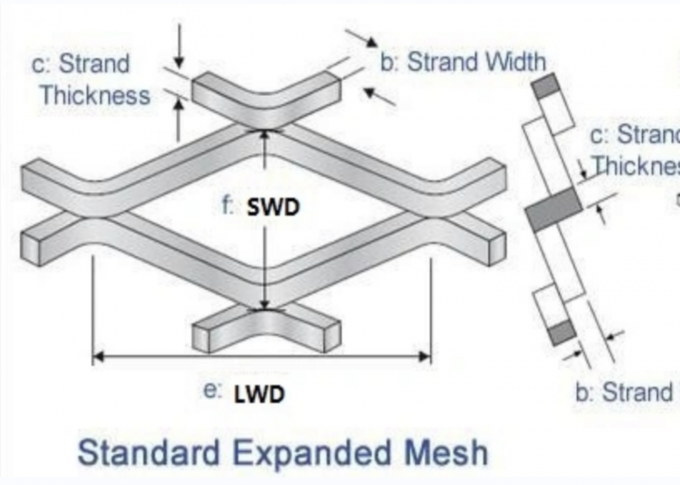

Hole size: SWDxLWD: 3mmx6mm~30mmx60mm
PVC powder coated expanded metal fence use for highway
Thickness |
nominal size of mesh |
Standard size | Weight | |||
| SWD | LWD | Strand width | LWM | SWM | ||
| D | TL | TB | b | B | L | kg/m2 |
| 1.0 | 10 | 25 | 1.12 | |||
| 12 | 30 | 1.35 | 1.76 | |||
| 15 | 40 | 1.68 | ||||
| 1.2 | 10 | 25 | 1.13 | |||
| 12 | 30 | 1.35 | 2.12 | |||
| 15 | 40 | 1.68 | ||||
| 18 | 50 | 2.03 | ||||
| 1.5 | 15 | 40 | 1.69 | 2.64 | ||
| 18 | 50 | 2.03 | ||||
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.25 | 3.53 | |||
| 2.0 | 18 | 50 | 2.03 | 1800 2000 2500 |
3600 4000 5000 |
|
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.26 | 4.42 | |||
| 36 | 100 | 4.05 | ||||
| 44 | 120 | 4.95 | 5.29 | |||
| 3.0 | 36 | 100 | 4.05 | |||
| 44 | 120 | 4.95 | ||||
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
| 2500 | 6400 | |||||
| 65 | 180 | 4.60 | 2000 | 6400 | 3.33 | |
| 2500 | 8000 | |||||
| 4 | 22 | 60 | 4.5 | 1500 | 2000 |
2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 | ||
| 38 | 100 | 6 | 2000-4500 | 9.91 | ||
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
| 35 | 80 | 6 | 2000-4000 | 14.71 | ||
| 38 | 100 | 7 | 2000-4500 | 14.67 | ||
| 56 | 150 | 6 | 2000-6000 | 8.41 | ||
| 76 | 200 | 6 | 2000-6000 | 6.19 | ||
| 6 | 32 | 80 | 7 | 2000-4000 | 20.60 | |
| 38 | 100 | 7 | 2000-4500 | 17.35 | ||
| 56 | 150 | 7 | 2000-6000 | 11.77 | ||
PVC powder coated expanded metal fence use for highway
