With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-DHW |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | USD2.3-3.5/SQUARE METER |
| Packaging Details: | IB BULK |
| Delivery Time: | 7-10 DAYS |
| Supply Ability: | 30TON/DAY |
| Material: | CRB550 | Application: | Construction |
|---|---|---|---|
| Hole Size: | 50mm-300mm | Color: | BLACK |
| Standard: | ASTM Or Australia Standard | Customized: | Acceptable |
| High Light: | ISO9001 Concrete Wire Mesh,Concrete Wire Mesh Fence,Ribbed Welded Steel Wire Mesh |
||

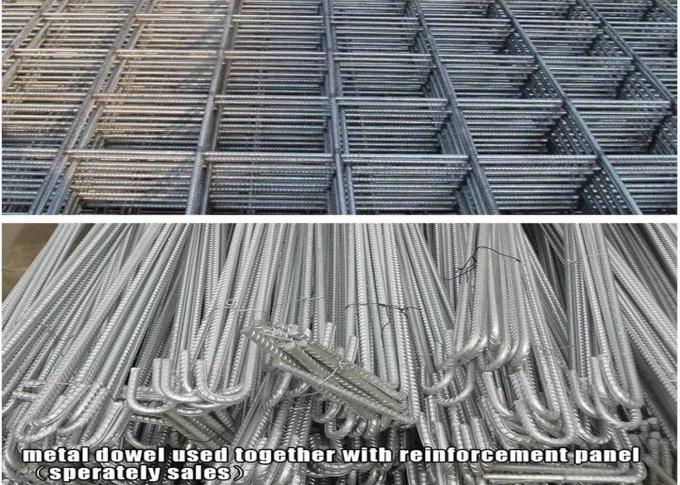

Ribbed steel welded wire mesh introduction:
The ribbed steel welded wire mesh is a mesh structure formed by electric welding of longitudinal and transverse reinforcement. The hole size of the reinforcement mesh can be adjusted according to the construction requirements.
Material of the Ribbed steel welded wire mesh:
The ribbed steel welded wire mesh should be made of crb550 cold-rolled ribbed steel bar, or crb510 cold drawn smooth steel bar
Customized is acceptable, in our factory, we can manufacture the Concrete welded wire mesh as customer’s requirements.
Main Market and Standard
Europe - ENV 10 080Great Britain - BS 4449 / Grade 460B
Germany - DIN 488 / Bst500
France - NF A 35-016 & 015 / FeE 500-3
Netherlands - NEN 6008 / FEB 500 HWL
Spain - UNE 36-068 EX 200 / B 500 SD
Ukraine - DSTU 3760 / A400 A500 A800 A1000
And all other major standards on request
Australian/New Zealand Standard -AS/NZS 4671:2001
Specification of ribbed steel welded wire mesh
| WIPE DIAMETER | WIRES NUMBER | PITCH OF WIRES | SHEET DIMENSION | (SQM) |
Edge wires |
(kg) SHEET |
(kg/SQM)
|
|||||||||||||
| MESH SHEET | ||||||||||||||||||||
| TYDE | LONG | CROSS | LONG | CROSS | LONG | CROSS | WIDTH | LENGTH | AREA | WEIGHT | ||||||||||
| Sqaure Mesh | ||||||||||||||||||||
| SL52 | 4.77 | 4.77 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 20.000 | 1.4000 | |||||||||
| SL62 | 6.00 | 6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x4.24@100 | 33.000 | 2.292 | ||||||||
| SL72 | 6.75 | 6.75 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x4.77@100 | 41.000 | 2.778 | ||||||||
| SL81 | 7.60 | 7.60 |
25
|
60 | 100 | 100 | 2400 | 6000 | 14.40 |
0
|
105.000 | 7.100 | ||||||||
| SL82 | 7.6 | 7.6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4X5.37@100 | 52.000 | 3.611 | ||||||||
| SL92 | 8.6 | 8.6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x6.00 @100 | 66.000 | 4.514 | ||||||||
| SL102 | 9.5 | 9.5 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4X6.75@100 | 80.000 | 5.556 | ||||||||
| SL63 | 6 | 6 | 6 | 30 | 300 | 300 | 2300 | 6000 | 13.80 | 4X4.00@100 | 21.000 | 1.594 | ||||||||
| SL53 | 4.77 | 4.77 | 6 | 20 | 300 | 300 | 2300 | 6000 | 13.80 | 4X4.00@100 | 15.000 | 1.000 | ||||||||
Application of the ribbed steel mesh
Ribbed welded steel mesh can be used in highway cement concrete pavement
Ribbed steel welded mesh can be used in bridge engineering
It is mainly used for Deck Pavement of municipal bridges and highway bridges, old deck reconstruction, pier crack prevention, etc
Ribbed steel welded mesh can be used for tunnel lining
The ribbed steel welded mesh shall be set in the shotcrete to improve the shear and bending strength of the shotcrete, improve the punching and bending resistance of the concrete, improve the integrity of the shotcrete, reduce the shrinkage crack of the shotcrete and prevent local block falling.
Ribbed steel welded wire mesh machine:
Ribbed steel welded wire mesh packing:
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
