With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | China |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-SDL |
| Minimum Order Quantity: | 500 m2 |
|---|---|
| Price: | USD0.8-2.0 |
| Packaging Details: | pallet |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | USD300 M2/DAY |
| Hole Shape: | Square, Long Hole | Material: | Low Carbon Steel |
|---|---|---|---|
| Type: | Welded Mesh | Application: | Fence, Security Fence |
| Wire Gauge: | 0.5mm-2.5mm | Surface Treatment: | Hot Dipped Galvanized |
| High Light: | Security Welded Wire Mesh Fence,Welded Wire Mesh Fence 0.5mm,Wire Mesh Security Fence |
||

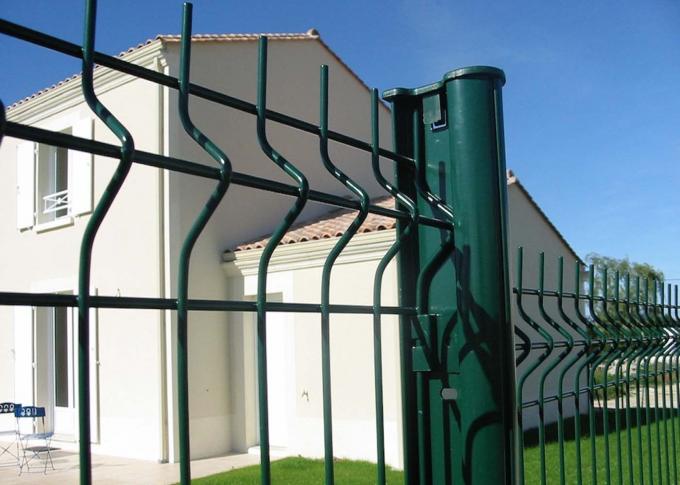

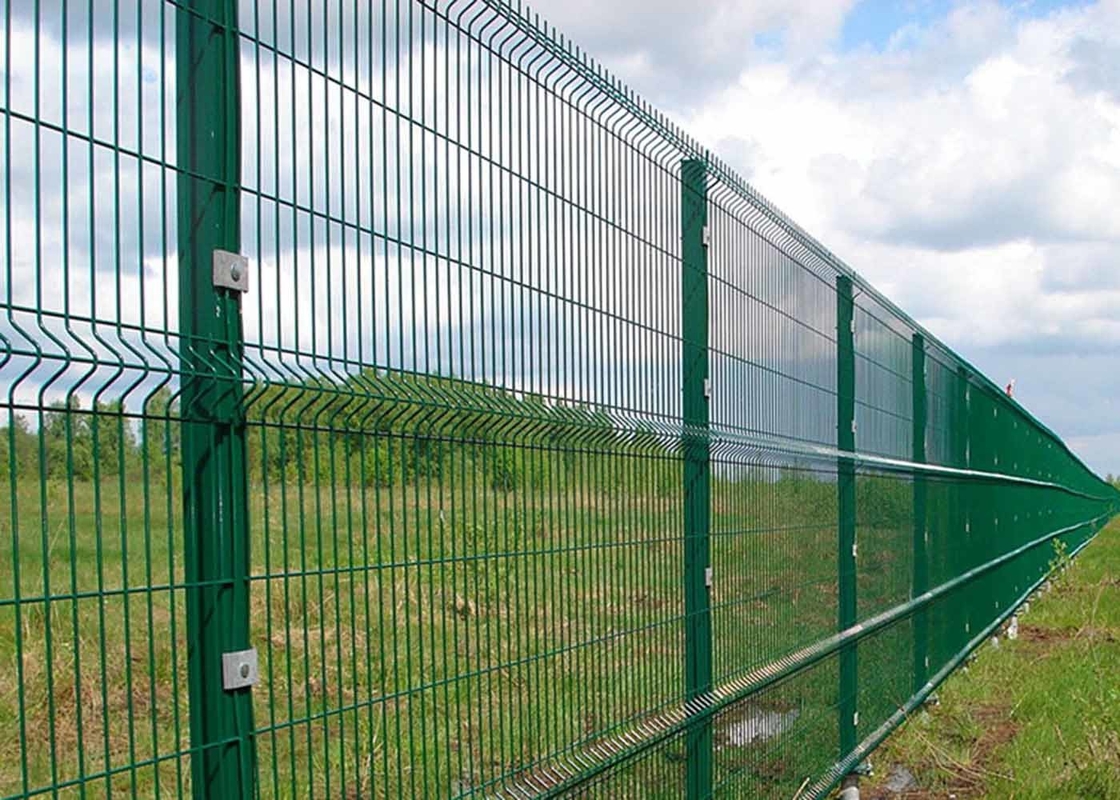

Welded Wire Mesh Fence With Hot Galvanized And PVC Coated As Farm Fence, Football Fence
Welded wire mesh fence introduction

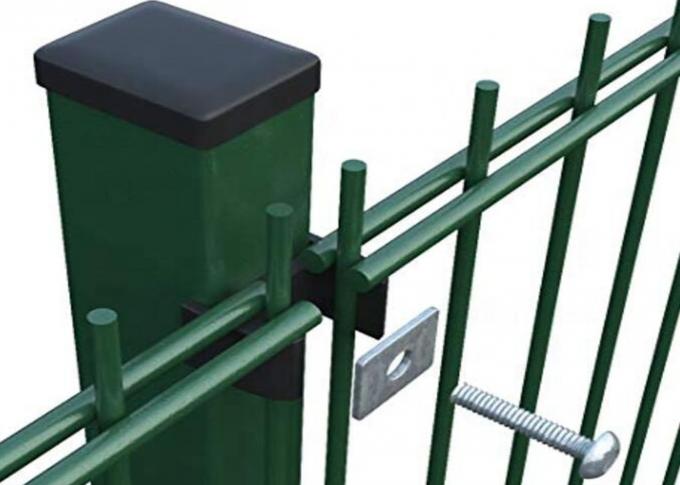

Welded wire mesh fence is welded with high-strength cold drawn low-carbon steel wire to form a mesh, and then hydraulically formed, and then fixed with the steel pipe pillar with link accessories.

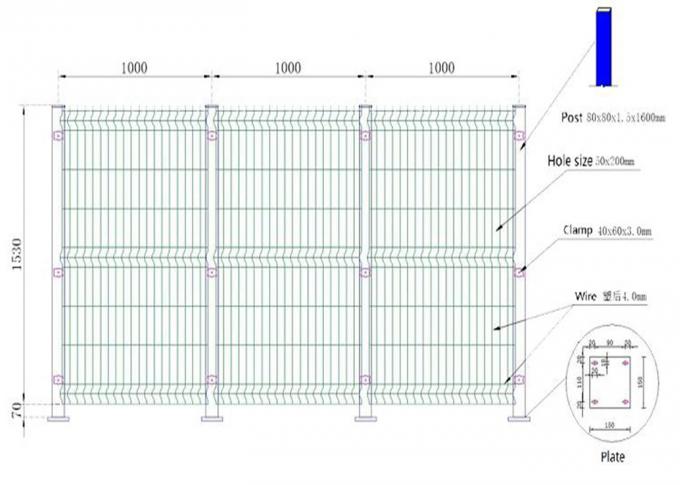

Welded wire mesh fence specification
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm | 3.0mm | 2.0m | 630mm | 2 | Round Post | ||
| 50x150mm | or | or | 830mm | 2 | Rectangular Post(RHS) | ||
| 50x200mm | 3.5mm | 2.50m | 1030mm | 2 | 48x1.5/2.0mm | Square Post(SHS) | |
| 55x200mm | or | or | 1230mm | 2 | 60x1.5/2.0mm | 40x60x1.5/2.0mm | |
| 75x150mm | 4.0mm | 2.9m | 1430mm | 2 | 50X50x1.5/2.0mm | 40x80x1.5/2.0mm | |
| etc. | or | 1530mm | 3 | 60x60x1.5/2.0mm | 60x80x1.5/2.0mm | ||
| 4.50mm | 1630mm | 3 | 80x80x1.5/2.0mm | 80x100x1.5/2.0mm | |||
| or | 1730mm | 3 | |||||
| 5.00mm | 1830mm | 3 | |||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | |||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you. | |||||||
The advantage of welded wire mesh fence
About our company
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
