With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | China |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-DHW |
| Minimum Order Quantity: | 500 m2 |
|---|---|
| Price: | USD0.8-2.0 |
| Packaging Details: | pallet |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | USD300 M2/DAY |
| Hole Shape: | Square Hole | Material: | Galvanized Wire |
|---|---|---|---|
| Type: | Welded | Application: | Protection |
| Wire Gauge: | 2.2-5.0mm | Width: | 1.2m |
| Length: | 1.2m | High: | 1.1m |
| High Light: | Galvanized Gabion Baskets,Welded Wire Gabion Baskets,Gabion |
||
galvanized welded gabion basket,welded gabion , welded gabion wall introduction:
Welded Gabion basket stone cage is made of Welded Wire Mesh Panels assembled with spirals, stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Welded Gabion basket is made of galfan wire and galvanized wire. It can be moved relatively easily by a simple hand truck by a single person. Simple installation. No special technology needed. Welded wire gabion network installation fast and convenient and simple structure and beautiful, save work time saving, high work efficiency.
galvanized welded gabion basket,welded gabion , welded gabion wall detail:
| Normal Box sizes (m) | NO.of diaphragms(pcs) | Capacity(m³) |
| 0.5x0.5x0.5 | 0 | 0.125 |
| 1x0.5x0.5 | 0 | 0.25 |
| 1x1x0.5 | 0 | 0.5 |
| 1x1x1 | 0 | 1 |
| 1.5x0.5x0.5 | 0 | 0.325 |
| 1.5x1x0.5 | 0 | 0.75 |
| 1.5x1x1 | 0 | 1.5 |
| 2x0.5x0.5 | 1 | 0.5 |
| 2x1x0.5 | 1 | 1 |
| 2x1x1 | 1 | 2 |
| This table refers to the industry standard unit sizes; non-standard unit sizes are available in diamensions of munltiples of the mesh opening. | ||
| Normal Box sizes(m) | NO. of diaphragms(pcs) | Capacity per box(m³) |
| 1.0x1.0x0.5 | None | 0.5 |
| 1.0x1.0x1.0 | None | 1.0 |
| 1.5x1.0x0.5 | None | 0.75 |
| 1.5x1.0x1.0 | None | 1.5 |
| 2.0x1.0x0.5 | 1 | 1.0 |
| 2.0x1.0x1.0 | 1 | 2.0 |
| 3.0x1.0x0.5 | 2 | 1.5 |
| 3.0x1.0x0.5 | 2 | 3.0 |
| 4.0x1.0x0.5 | 3 | 2.0 |
| 4.0x1.0x1.0 | 3 | 4.0 |

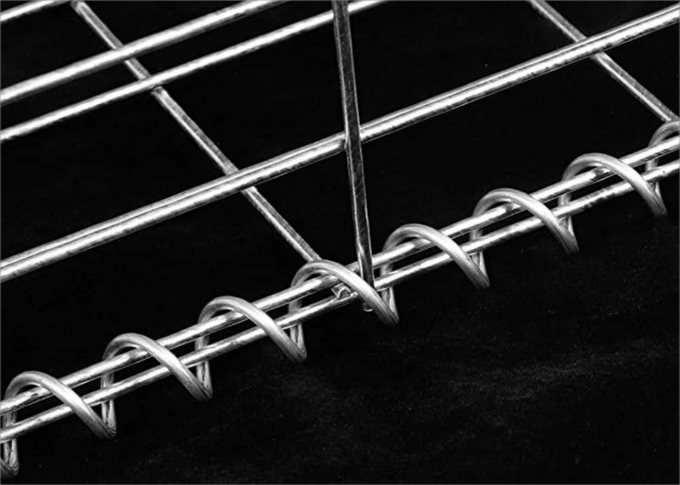

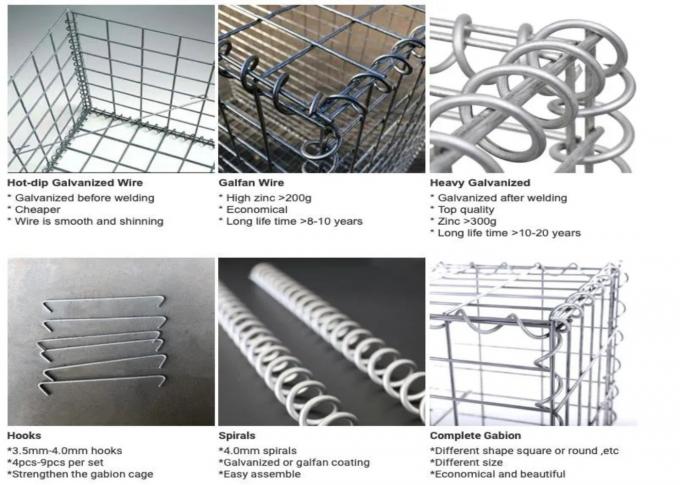

galvanized welded gabion basket,welded gabion , welded gabion wall accessory

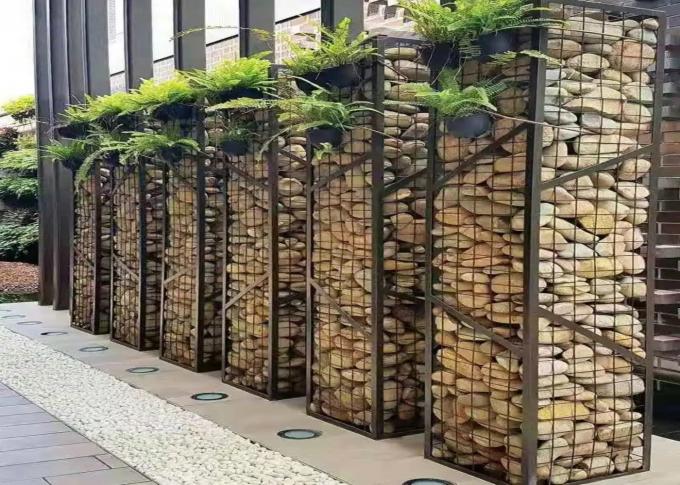

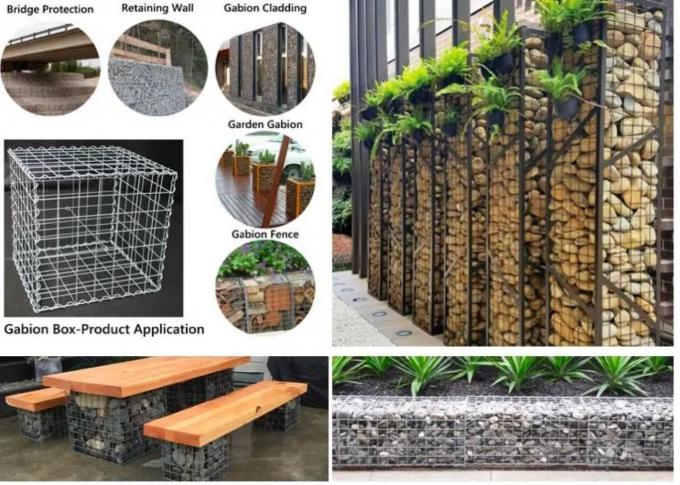

galvanized welded gabion basket,welded gabion , welded gabion wall show:
